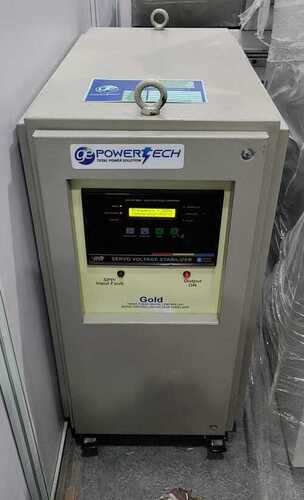

Oil Cooled Servo Stabilizer

Name: Oil Cooled Servo Stabilizer
Brand: GANGA ENTERPRISES
Price: 75000 INR
Availability: InStock

Price 75000 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Oil Cooled Servo Stabilizer Specification

Output Current
Up to 280A (as per kVA rating)

Input Voltage
340V-480V / 170V-270V (customizable)

Output Voltage
220V / 230V / 415V (as per requirement)

Efficiency
> 98%

Frequency (MHz)
50 Hertz (HZ)

Phase
Single Phase / Three Phase

Current
Up to 280A, model specific

Weight
Approx. 120kg to 700kg (model specific)

Ambient Temperature
0C to 45C

Degree of Protection
IP21

Control System
Servo Motor Controlled

Usage
Industrial, Commercial, Residential

Insulation Resistance
>2 M at 500V DC

Design
Oil Cooled, Floor Mounted Cabinet

Voltage Protection
Over/Under Voltage Protection, Short Circuit Protection

Display
Digital / Analog Meter

Dimension (L*W*H)
Varies by model (Example: 900mm x 650mm x 1350mm)

Rated Power
10 kVA to 200 kVA (custom-built options available)

Current Type
AC

Waveform Distortion
Negligible (<1%)

Product Type
Voltage Stabilizer

Applicable Standards
IS 9815, IEC 60076

Correction Speed
35V/sec

Operating Humidity
Up to 95% RH non-condensing

Input Protection
MCB / MCCB / Contractor

Service Support
On-Site & Remote Support

Output Regulation
+/-1%

Cooling Type
Oil Immersed / Air Natural

Noise Level
<55 dB

Response Time
<10 ms

Enclosure Material
Powder Coated Steel / MS Sheet

Mounting Type
Floor / Base Mounted

Transformer Type
Copper wound/Aluminium wound available

Oil Cooled Servo Stabilizer Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Week

Delivery Time
5 Days

Main Domestic Market
Maharashtra

About Oil Cooled Servo Stabilizer

We are offering Oil Cooled Servo Stabilizer that helps in the regulation of voltage. This is highly effective and helps in the reduction of overheating of the stabilizer due to high-temperature environments. This is an expensive but very effective type of stabilizer. This voltage stabilizer is widely used in solid-state electronic circuitry to regulate voltage variations. Our Oil Cooled Servo Stabilizer works as an automatic line voltage corrector and uses synchronous motors for optimal functional usage.

Advanced Voltage Stabilization for Demanding Applications

Our Oil Cooled Servo Stabilizer protects against voltage fluctuations, delivering consistent output even in challenging input conditions. Designed for industrial, commercial, and residential use, it offers high efficiency and reliable operation with minimal noise and waveform distortion. The servo motor control and rapid response time make it ideal for safeguarding sensitive electronics and machinery in critical applications.

Flexible Design and Superior Protection

Choose from copper or aluminium wound transformers, customizable input voltages, and floor-mounted cabinets that suit various installation needs. Built with robust powder-coated steel or MS sheet, and compliant with IS 9815 and IEC 60076 standards, these stabilizers offer comprehensive input, output, and short-circuit protection, as well as digital/analog display options and IP21-rated enclosure.

Comprehensive Support and Customization

We provide end-to-end service-including on-site and remote support-from selection and installation to ongoing maintenance for models from 10 kVA to 200 kVA or more. Each stabilizer is customized for your voltage, phase, and current requirements, ensuring seamless integration and reliable performance in all Indian climatic and electrical environments.

FAQ's of Oil Cooled Servo Stabilizer:

Q: How does the Oil Cooled Servo Stabilizer provide voltage regulation?

A: The stabilizer uses a servo motor-controlled mechanism to automatically detect and adjust incoming voltage fluctuations within milliseconds. It maintains a steady output voltage (220V/230V/415V as per your needs) with an accuracy of 1%, ensuring safe and stable power supply to your equipment.

Q: What is the process for installing and commissioning the stabilizer?

A: Installation involves floor or base mounting the stabilizer in your facility and connecting it to your AC power supply. Our team provides both on-site and remote support for setup, testing, and commissioning to ensure optimal performance from day one.

Q: Where can this stabilizer be used, and what are its typical applications?

A: This product is engineered for industrial, commercial, and residential applications such as manufacturing plants, hospitals, data centers, offices, and housing complexes-any environment where precise voltage control and equipment protection are crucial.

Q: What type of protection features are included?

A: The stabilizer comes equipped with over/under voltage, short-circuit protection (MCB/MCCB/contactor), and IP21 rated enclosures. These features collectively safeguard both your equipment and the stabilizer itself, reducing downtime and repair costs.

Q: When should I choose a copper-wound versus an aluminium-wound transformer?

A: Copper-wound transformers offer better conductivity and higher efficiency, making them ideal for heavy-duty, continuous operations. Aluminium-wound options are more cost-effective and suitable for moderate loads, providing flexibility based on your performance and budget requirements.

Q: What benefits does the oil-immersed cooling system offer compared to air-cooled designs?

A: Oil-immersed cooling dissipates heat more efficiently, allowing the stabilizer to operate reliably even under high load or ambient temperature. This ensures extended performance, longevity, and reduced maintenance in demanding conditions.
